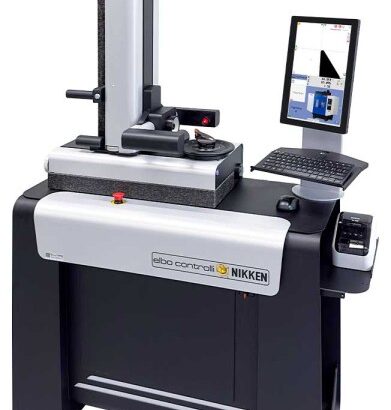

Nikken E46BAT1 Presetter Machine

The new E46BAT1 presetters allow you to optimize the machine tools setup, reducing downtime in your workshop.

Elbo Controlli NIKKEN has been dedicating time and resources to innovation for years, bringing state-of-the-art products to the market. The new “multi-camera” models have additional cameras that facilitate measurement and inspection of characteristic tool geometries.

In this context, the integration of an additional camera provides a considerable advantage by offering the possibility of performing a detailed inspection of the tool side, allowing distances and geometries to be calculated using software.

Another aspect is the calculation of the offset, a fundamental parameter for compensating for any displacement relative to the reference point for machining.

Accurate inspection of lathe tools, which are often complex and difficult to check using traditional methods, represents a significant challenge.

The natural granite structure and certified optical scales with interferometric laser guarantee accuracy and repeatability over time. Using state-of-the-art technology, these solutions offer a unique combination of versatility, reliability and performance, ensuring accurate measurements and optimised tool management.

The AUTOFOCUS function allows tools to be measured automatically, without the operator intervening manually. This mode is recommended for those who need to perform measurements on multi-cutter tools that would be very complex if performed manually and, above all, that minimises the risk of human error. Why not choose the best?

Technical features

GENERAL FEATURES

• Measuring range: max diameter 320 mm (radius 180 mm); max height 600 mm
• Base and column in natural granite: max linearity error 8 µm/m
• Steel base with 3 fixed and 1 adjustable feet
• Linear guideways (2 X axis, 1 Z axis) with double recirculating ball bearings slides
• Pneumatic axis movement unlock
• Manual gross movement
• Manual fine adjustment
• ECN AS371 certified optical scales (resolution 1µm)
• Vertical TFT 15,6″ Full HD Touch Screen Monitor
• Keyboard and mouse
• Overall dimensions: L = 1179 mm, H = 1935 mm, D = 568 mm
• Net weight: ~ 230 kg

SPINDLE FEATURES

• Interchangeable spindle (ISO,BT,CAT, HSK, Polygonal taper, etc.)
• Spindle identification system (SP-ID)
• C axis visualization
• Automatic spindle rotation and electronic index
• Pneumatic spindle brake
• Motorized mechanical tool holder clamping (standard pull stud DIN69872, ISO7388, MAS403)
• Motorized mechanical tool holder clamping (HSK, Polygonal taper)

CAMERA SYSTEM FEATURES

• Digital zoom = 4x
• Resizeable camera area
• MAIN CAMERA
  • Bi-telecentric optical lenses
  • Elbo Controlli NIKKEN camera system measuring range (mm) = 10×10 mm
  • Elbo Controlli NIKKEN camera system magnification = 18x
  • Tool measurement function
  • Tool inspection function
• SIDE CAMERA
  • Elbo Controlli NIKKEN camera system measuring range (mm) = 4×4 mm
  • Elbo Controlli NIKKEN camera system magnification = 44x
  • Tool inspection function

SOFTWARE AND MEASURING FUNCTIONS

• Embedded ECN operating system Linux based
• ECN machine software B version (blue screen)
• Number of machine origins / number of tool sets = ∞ / ∞
• Multi-origin function for multitasking machines
• Manual measure function with fixed reticle
• Autotargeting measure function
• Autotargeting measure function with dimension freeze
• Collimation indicators for fixed reticle measure
• On-screen automatic measure of tool corner radius & theoretical centre point
• On-screen automatic measure of tool corner angle & theoretical intersection
• Chamfer measuring function
• Adjustable Area of Interest (AOI)
• Automatic spindle rotation and measurement of tool edges
• Software for manual tool presetting and geometry check

GRAPHIC FUNCTIONS

• Adjustable reticles (axis and circles)
• Profile image capture function
• Automatic geometry (1 geometric entity)
• Geometry by points
• Camera image capture
• DXF files import and comparison with tool

CONNECTION AND INTEGRATION FUNCTIONS

• USB ports (4)
• LAN connection
• Standard post processor
