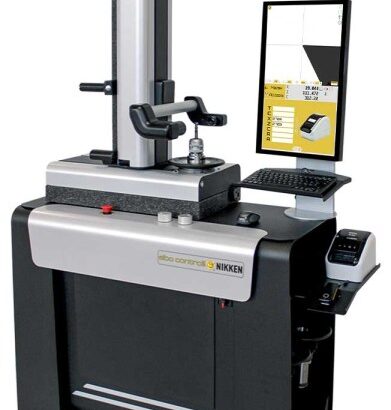

Nikken E46CX Presetter Machine

How to make the production of your mechanical workshop more effective nowadays?

In recent years all mechanical workshops have invested in new machine tools and have certainly increased their production capacity, but this does not always mean increasing productivity.

The presetting machine is certainly a tool that helps the organization of production to move in this direction, ensuring that the operator no longer has to “waste” machine time for tool measurement and thus allowing a strong increase in the productivity of the machine tools.

Elbo Controlli NIKKEN provides tools that can make the work of machine operators easier and drastically limit the possibility of errors.

As always, Elbo Controlli NIKKEN has developed its own way to automatically measure, inspect and analyze tools, following the company philosophy: making the operators’ work simple, reducing human errors to a minimum.

Prepare your measurement program with our new, simple and intelligent interface that allows you to set all measurement points, number of cutting edges, theoretical values and tolerances. You find everything you need in one screen: decide how you want to measure your tools and where you want to export the measurement results (post-processor, TID, RFID chip or simply save and print the report).

With E46CX it is possible to carry out the automatic positioning of the vision system, the measurement of cutting edges with autofocus, the adaptive identification of geometric entities. Data processing functions, a synoptic analysis of the results as well as the possibility of exporting/printing the data are also available. No complications. The software helps you at every stage.

The E46CX presetter allows you to improve production processes, the quality of workmanship and consequently of the product, reduces errors and costs and increases reliability.

Why choose the new E46CX presetter? Today we find ourselves competing with innovative companies and offering products and services more and more quickly. Automating is essential to manage, change and adapt the processes through which the company operates. Here comes a machine that helps your company move in this direction.

Technical features

GENERAL FEATURES

• Measuring range: max diameter 400 mm (radius 200 mm); max height 600 mm
• Base and column in natural granite: max linearity error 8 µm/m
• Steel base with 3 fixed and 1 adjustable feet
• Linear guideways (2 X axis, 1 Z axis) with double recirculating ball bearings slides
• Pneumatic axis movement unlock
• Motorized axis movement
• Manual gross movement
• Motorized fine adjustment
• ECN AS371 certified optical scales (resolution 1µm)
• Vertical TFT 21,5″ Full HD Touch Screen Monitor
• Keyboard and mouse
• Label printer side support
• Spindles side support (1 for 2 spindles)
• Overall dimensions: L = 1179 mm, H = 1935 mm, D = 568 mm
• Net weight: ~ 230 kg

SPINDLE FEATURES

• Interchangeable spindle (ISO,BT,CAT, HSK, Polygonal taper, etc.)
• Spindle identification system (SP-ID)
• C axis visualization
• Automatic spindle rotation and electronic index
• Pneumatic spindle brake
• Motorized mechanical tool holder clamping (standard pull stud DIN69872, ISO7388, MAS403)
• Motorized mechanical tool holder clamping (HSK, Polygonal taper)

CAMERA SYSTEM FEATURES

• Bi-telecentric optical lenses
• Elbo Controlli NIKKEN camera system measuring range (mm) = 10×10 mm
• Monochromatic C-MOS sensor USB 3.0 Super speed connection
• Elbo Controlli NIKKEN camera system resolution = 1 µm
• Elbo Controlli NIKKEN camera system magnification = 25x
• Analogic and digital camera view
• Digital zoom = 4x
• Tool inspection function
• Resizeable camera area

SOFTWARE AND MEASURING FUNCTIONS

• Embedded ECN operating system Linux based
• ECN machine software C version (yellow screen)
• Number of machine origins / number of tool sets = ∞ / ∞
• Multi-origin function for multitasking machines
• Manual measure function with fixed reticle
• Autotargeting measure function
• Autotargeting measure function with dimension freeze
• Collimation indicators for fixed reticle measure
• On-screen automatic measure of tool corner radius & theoretical centre point
• On-screen automatic measure of tool corner angle & theoretical intersection
• Chamfer measuring function
• Adjustable Area of Interest (AOI)
• Automatic spindle rotation and measurement of tool edges
• Presetter automation software for tool presetting (1 step)
• Presetter automation software for tool presetting (Unlimited step)
• Software for manual tool presetting and geometry check
• Presetter automation software for tool presetting and geometry check (full CN)

GRAPHIC FUNCTIONS

• Adjustable reticles (axis and circles)
• Profile image capture function
• Automatic geometry (multiple geometric entity)
• Geometry by points
• Camera image capture
• DXF files import of the tool profile
• Manual DXF acquisition of the revolution profile
• Automatic DXF acquisition of the revolution profile

CONNECTION AND INTEGRATION FUNCTIONS

• USB ports (4)
• LAN connection
• Wi-Fi connection
• Standard post processor
