Nikken E68CXT3 Presetter Machine

The E68 presetter series are the ideal solution for those who want to optimise production times, improve machining accuracy and reduce waste. Our passion for our work is what has enabled us to offer the market advanced yet easy-to-use solutions.

Built to withstand the harshest conditions, the E68 series is perfect for use in industrial environments characterised by constant vibration, which could compromise measurement accuracy. Its structural rigidity ensures high operational reliability, allowing you to work safely even in the most demanding situations.

Every component in the E68 series undergoes rigorous construction and testing procedures. This commitment to quality results in a run-out error of less than 2 µm, ensuring extremely accurate and reliable measurements.

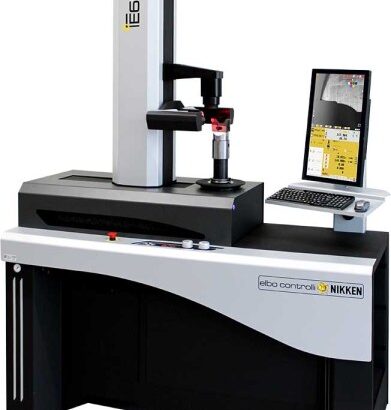

The new E68CXT3 tool presetter is equipped with three cameras: the first for front view with 25X magnification, the second and third for side and top view of the tool with 60X magnification.

The system enables tool manufacturers and resharpeners to measure all geometric characteristics of the tool.

To facilitate the measurement of bulky tools, the vertical camera can be placed in the maximum Z position with an automatic cycle, avoiding interference with the tool. After the operation, a click allows the camera to be moved to the home position to safely resume standard operations.

This solution is not just a tool presetter, but an indispensable ally in improving machining quality, extending tool life and reducing waste.

With Elbo Controlli NIKKEN, every control is a guarantee of quality: choose the technology that works for you.

The E68CXT3 is the only automated multicamera presetter: in fact, it is equipped with motorised axes and, once programmed, is able to perform automatic measurement cycles.

Technical features

GENERAL FEATURES

• Measuring range: max diameter 600 mm (radius 300 mm); max height 800 mm
• Base and column in natural granite: max linearity error 8 µm/m
• Monoblock machine structure in steel, floor mounted with 4 vibration damper adjustable supports
• Linear guideways (2 X axis, 1 Z axis) with double recirculating ball bearings slides
• Motorized axis movement
• Micrometric motorized adjustment
• ECN GS371 certified optical scales (resolution 1µm)
• Vertical TFT 21,5″ Full HD Touch Screen Monitor
• Keyboard and mouse
• Spindles side support (1 for 2 spindles)
• Overall dimensions: L = 1748,5 mm, H = 2217 mm, D = 717 mm
• Net weight: ~ 570 kg

SPINDLE FEATURES

• Interchangeable spindle (ISO,BT,CAT, HSK, Polygonal taper, etc.)
• Spindle identification system (SP-ID)
• C axis visualization
• Automatic spindle rotation and electronic index
• Pneumatic spindle brake
• Motorized mechanical tool holder clamping (standard pull stud DIN69872, ISO7388, MAS403)
• Motorized mechanical tool holder clamping (HSK, Polygonal taper)

CAMERA SYSTEM FEATURES

• Digital zoom = 4x
• Resizeable camera area
• MAIN CAMERA
  • Bi-telecentric optical lenses
  • Elbo Controlli NIKKEN camera system measuring range (mm) = 10×10 mm
  • Elbo Controlli NIKKEN camera system magnification = 25x
  • Tool measurement function
  • Tool inspection function
• SIDE CAMERA
  • Elbo Controlli NIKKEN camera system measuring range (mm) = 4×4 mm
  • Elbo Controlli NIKKEN camera system magnification = 60x
  • Tool inspection function
• TOP CAMERA
  • Elbo Controlli NIKKEN camera system measuring range (mm) = 4×4 mm
  • Elbo Controlli NIKKEN camera system magnification = 60x
  • Tool inspection function

SOFTWARE AND MEASURING FUNCTIONS

• Embedded ECN operating system Linux based
• ECN machine software C version (yellow screen)
• Number of machine origins / number of tool sets = ∞ / ∞
• Multi-origin function for multitasking machines
• Manual measure function with fixed reticle
• Autotargeting measure function
• Autotargeting measure function with dimension freeze
• Collimation indicators for fixed reticle measure
• On-screen automatic measure of tool corner radius & theoretical centre point
• On-screen automatic measure of tool corner angle & theoretical intersection
• Chamfer measuring function
• Adjustable Area of Interest (AOI)
• Automatic spindle rotation and measurement of tool edges
• Presetter automation software for tool presetting (1 step)
• Presetter automation software for tool presetting (unlimited step)
• Software for manual tool presetting and geometry check
• Presetter automation software for tool presetting and geometry check (full CN)

GRAPHIC FUNCTIONS

• Adjustable reticles (axis and circles)
• Profile image capture function
• Automatic geometry (multiple geometric entity)
• Geometry by points
• Camera image capture
• DXF files import and comparison with tool
• Manual DXF acquisition of the revolution profile
• Automatic DXF acquisition of the revolution profile

CONNECTION AND INTEGRATION FUNCTIONS

• USB ports (4)
• LAN connection
• Wi-Fi connection
• Standard post processor
